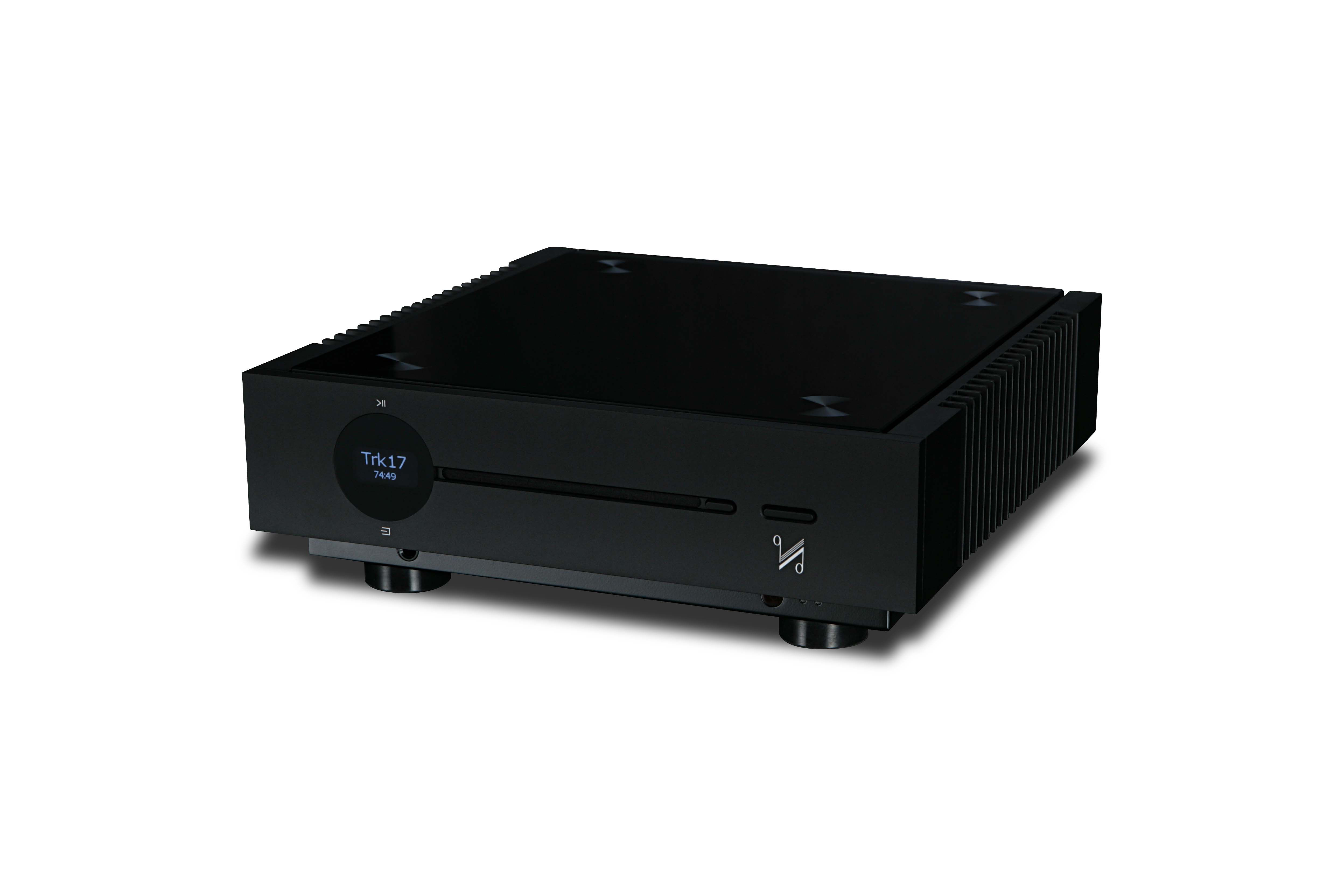

QUAD Artera PLAY+ (CD / DAC / Pre-amp)
The Artera Play+ is the latest addition to the Artera range. The Artera Play+ Combines the sleek user interface with the latest high definition audio technology. The CD player and DAC is the perfect match for the high power drive of Artera Stereo, while you enjoy your music with ultra-high resolution playback up to 32bit/384kHz in addition to DSD64/128/256 files through the USB input.
QUAD Artera PLAY+ (CD / DAC / Pre-amp)
General Description CD Player & DAC
D/A Converter
ESS ES9018 32bit DAC
Output Level (1kHz)
0 - 2.5 Vrms (PRE Outputs)
0 - 5 Vrms (Balanced Outputs)
L/R Channel Difference±0.02dB (1kHz)
Frequency Response
-0.2dB (20Hz-20kHz, 1kHz)
Total Harmonic Distortion
<0.001% (20Hz-20kHz)
Linearity
±0.01dB (20Hz-20kHz)
Signal to Noise Ratio (S/N)
>110dB (1kHz)
>118dB (Weighted, 1kHz)
Channel Separation
>100dB (1kHz)
USB Input
1 _ USB (Support HID)
USB Input Sampling Rates
44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 384kHz
USB DSD
DSD64, DSD128, DSD256
Digital Audio Inputs
2 _ Optical TOSlink
2 _ RCA (DIG1, DIG2)
Digital Audio Outputs
1 _ Optical TOSlink
1 _RCA (DIG)
Digital Inputs & outputs Sampling Rates
44.1 - 192kHz
Analogue Inputs
2 _ RCA(AUX1, AUX2)
Analogue Outputs
2 x XLR, RCA (PRE)
Dimension (W x D x H)
320 x 320 x 105mm
Weight
8.5 kg
