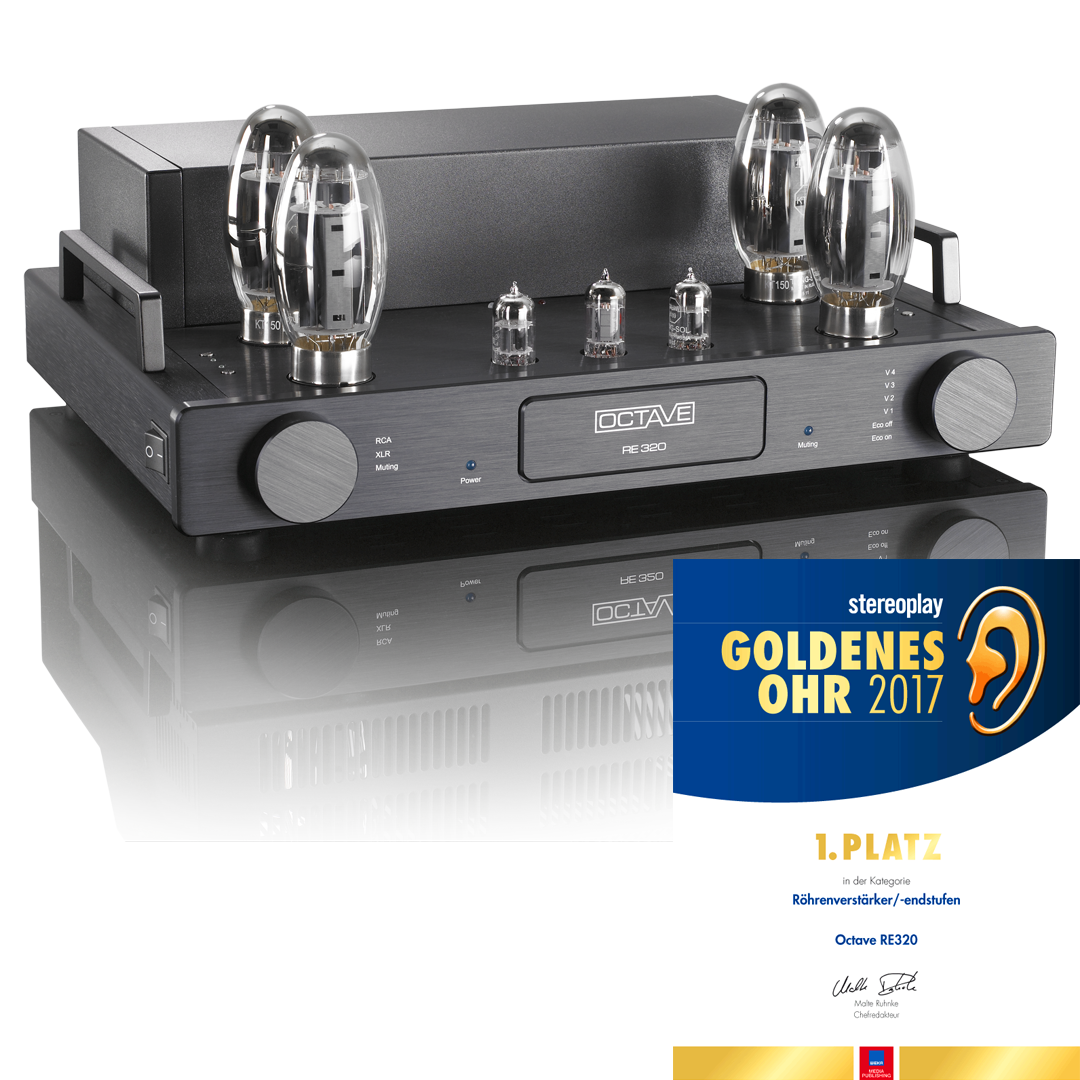

Octave RE 320 Power Amplifier
In the new RE 320, Octave’s SE-technology has been effectively implemented into a most astonishing compact stereo power amplifier - with resounding success!
The Octave RE 320 stereo power amplifier marks a significant evolution of this model series. The heart of the amplifier, the actual amplifier stage, is completely revised. Because for the first time the technical details of the Jubilee SE models have been utilized.
Together with a specially developed power supply for the SE-concept, as well as highly specialized, wideband transformers, the RE 320 can drive almost any speaker on the planet and always plays -unaffected by the load - at the same extremely high performance level.
This SE technology, previously implemented in the new Octave V 80 SE flagship integrated amplifier model, is characterized by significantly enhanced stability and extreme linearity.
As the experienced author Roland Kraft has carved out unambiguously in the review of the RE 320 in the German hifi magazine Stereoplay 03/2016: "We know very few tube amplifiers that are so uncritical in terms of speakers and therefore are able to unfold their sonic capabilities in virtually any combination.”(Please click here to access the complete review)
The concept is based on the modern KT150 power pentodes. The extremely high current of the KT150 allows a maximum output power of about 2 x 130 W with two tubes in push-pull mode.
The frequency range of the RE 320 extends from 5 Hz to 85 kHz. Looking to the impulse power, the 320 can achieve over 200 watts. This type of power delivery guarantees an inimitable sovereignty, with huge reserves while perfectly representing the effortless dynamics that distinguishes Octave.
A variety of modern and innovative detail solutions ensures a constant performance level that will last for years. Thus, for example, the noise level is so extremely low - by more than -110 dB, that even with high efficiency loudspeakers no hum or noise is heard.
Many practical features such as the precise adjustment of the BIAS, the power switch for different tube types, the intelligent ECO mode, the optional connection for the external black box modules and the switchable RCA and XLR inputs make the RE 320 stereo power amplifier a universal playback partner in this component category.
The RE 320 enchants with a sound that is stable and reliable at all loads. The ease of musical playback is particularly impressive and thanks to the incredible control the sound always remains composed, honest in its dimensions and conveys even the finest details with an irresistible naturalness.
Octave RE 320 Power Amplifier
Basic Model
Power Amplifier 2 x 130 Watt RMS
Tube Complement KT 150, Driver Stage: 3 x ECC 82
Design Aluminium silver or Aluminium black
Add On Modules
Black-Box and Super Black BoxSpecifications
Output Power into 4 ohms
Power Selector High: 2 x 130 W RMS
Power Selector Low: 2 x 75 W RMS
Peak Power into 4 ohms
Power Selector High: 200 W one channel
2 x 150 W both channelsPower Selector Low: 140 W one channel
Into 8-Ohms Load the Output Power
is reduced by 20%Power Bandwith
25 Hz - 85 kHz / - 3dB at Full Power
5 Hz - 85 kHz / -3dB at 5 W
Noise
< 100 µV 150 Hz - 15 kHz, > - 110 dB
Input Sensitivity
0,8 V RCA; 1,6 V XLR
Input Resistance
220 kOhm RCA; 20 kOhm XLRCMRR of the XLR-Input
> 85dB / 1 kHz
Minimal Load Impedance
2 OhmGain
+28dB - RCA
Eco Mode Trigger Level
0,5 mV
Inputs
1 x RCA, 1 x XLR
Outputs
1 x Speaker terminal for 4 mm Banana connectors and spades
Features
ECO Mode, Bias Adjustment, Power ManagementGeneral Facts
Power Consumption
< 20 W in Ecomode, 180 W idle, 550 W at full power
Standard Accessory
Power Cord, 3 mm Screwdriver for BIAS Adjustment
Weight 27,6 kg
